五、话题（topic）

📌话题可理解为节点之间的通信

1.动手实现

（1）话题发布者

topic_publisher.py

import rclpy
from rclpy.node import Node
from std_msgs.msg import String

class TopicPublisherNode(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        self.pub = self.create_publisher(String, "hello", 10) # 参数：类型，名称，队列长度
        self.timer = self.create_timer(0.5, self.timer_callback) # 定时执行函数

    def timer_callback(self):
        msg = String()
        msg.data = "Hello Subscribers"
        self.pub.publish(msg)
        self.get_logger().info('Publishing: "%s"' % msg.data)

def main(args=None):
    rclpy.init(args=args)
    node = TopicPublisherNode("topic_hello_publisher")
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

（2）话题订阅者

topic_subscriber.py

import rclpy
from rclpy.node import Node
from std_msgs.msg import String

class TopicSubscriberNode(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        self.sub = self.create_subscription(String, "hello", self.sub_callback, 10)

    def sub_callback(self, msg):
        self.get_logger().info('I heard: "%s"' % msg.data)

def main(args=None):
    rclpy.init(args=args)
    node = TopicSubscriberNode("topic_hello_subscriber")
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

（3）配置节点并运行

同时运行发布者和订阅者

2.进阶--三个节点配合实现人脸打卡

（1）环境配置

sudo pip3 install face_recognition

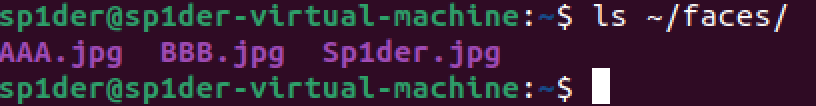

（2）先前准备--录入人脸

录入人脸只需要把每个人的正脸照片放进一个文件夹即可

我这里放在了\~/faces/

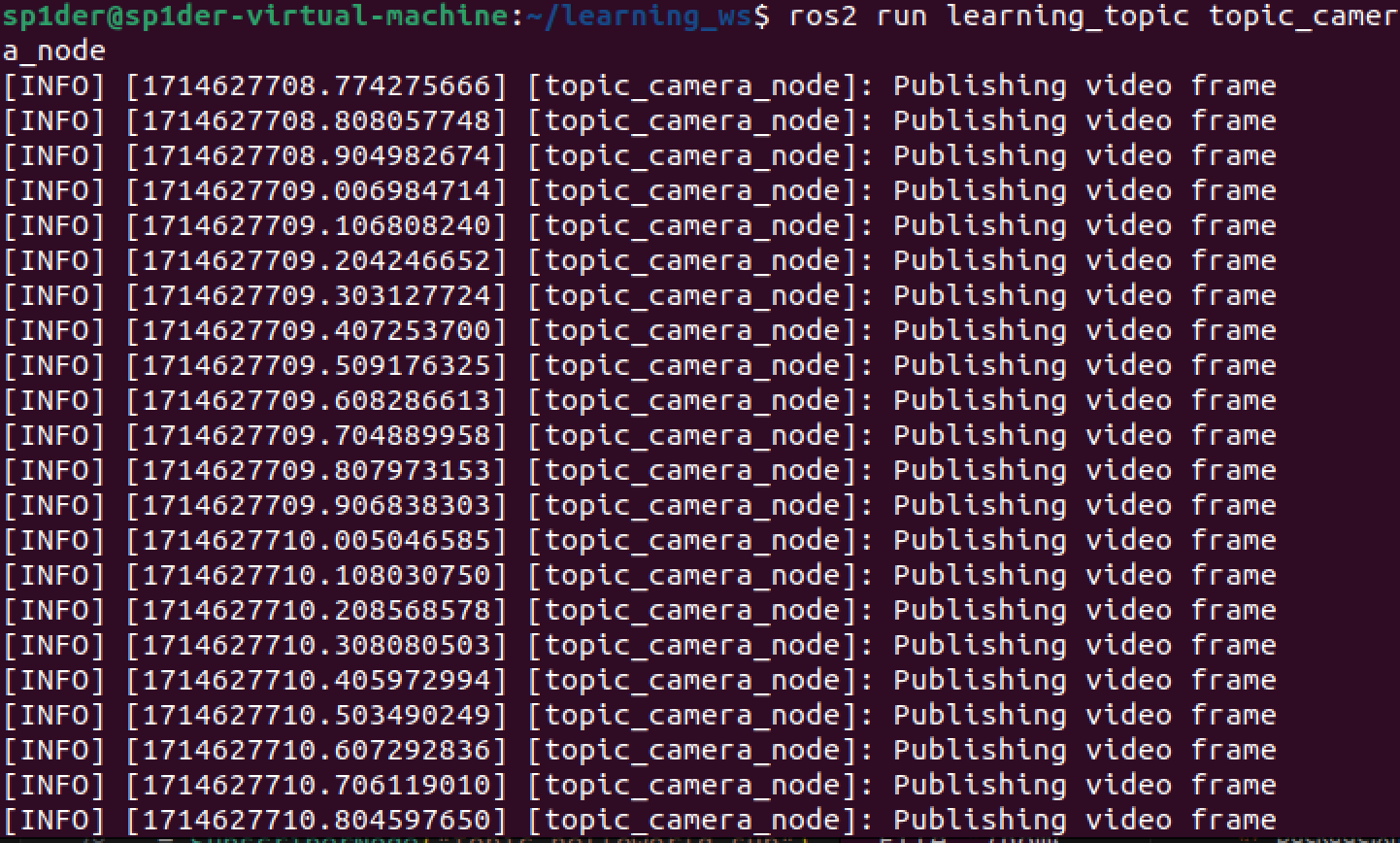

（3）摄像头画面采集节点

camera.py

import cv2
import rclpy
from rclpy.node import Node
from cv_bridge import CvBridge
from sensor_msgs.msg import Image

class Camera(Node):

    def __init__(self, node_name):
        super().__init__(node_name)
        self.pub = self.create_publisher(Image, "camera", 10)
        self.timer = self.create_timer(0.1, self.timer_callback)
        self.cap = cv2.VideoCapture(0)
        self.cv_bridge = CvBridge()

    def timer_callback(self):
        ret, frame = self.cap.read()

        if ret:
            self.pub.publish(self.cv_bridge.cv2_to_imgmsg(frame, 'bgr8'))

        self.get_logger().info('Publishing video frame')

def main(args=None):
    rclpy.init(args=args)
    node = Camera("topic_camera_node")
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

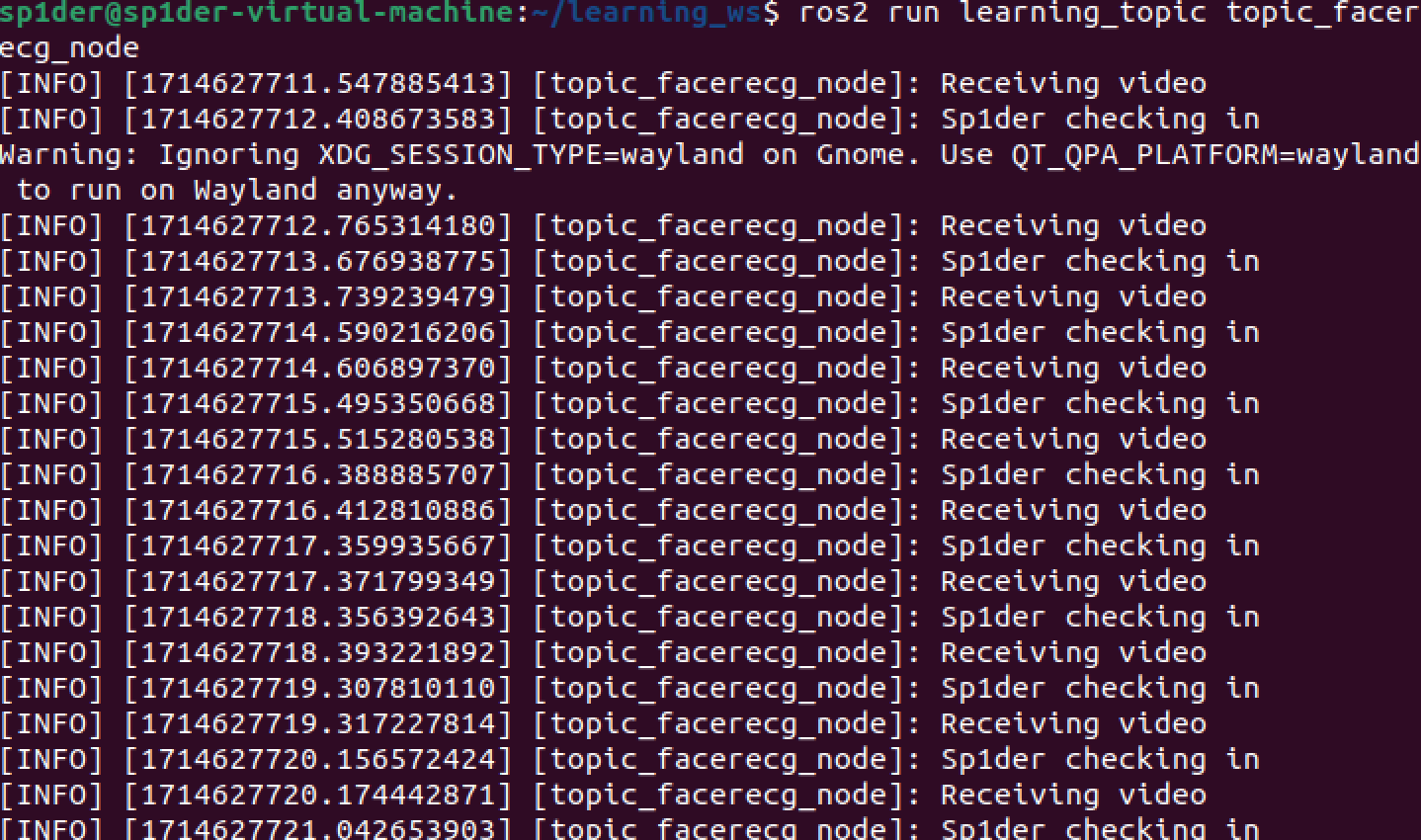

（4）人脸识别节点

face_recg.py

import os
import cv2
import rclpy
import face_recognition
from rclpy.node import Node
from cv_bridge import CvBridge
from sensor_msgs.msg import Image
from std_msgs.msg import String

class FaceRecg(Node):

    def __init__(self, node_name):
        super().__init__(node_name)
        self.sub = self.create_subscription(
            Image, 'camera', self.listener_callback, 10
        )
        self.cv_bridge = CvBridge()

        self.pub = self.create_publisher(String, "checkin", 10)
        self.msg = String()

        self.faces_path = '/home/sp1der/faces/'
        self.known_names=[]
        self.known_encodings=[]
        for image_name in os.listdir(self.faces_path):
            load_image = face_recognition.load_image_file(self.faces_path+image_name)
            image_face_encoding = face_recognition.face_encodings(load_image)[0]
            self.known_names.append(image_name.split(".")[0])
            self.known_encodings.append(image_face_encoding)

    def listener_callback(self, data):
        self.get_logger().info('Receiving video')
        frame = self.cv_bridge.imgmsg_to_cv2(data, 'bgr8')
        self.face_recg(frame)

    def face_recg(self, frame):
        rgb_frame = cv2.resize(frame, (0, 0), fx=1, fy=1)
        face_locations = face_recognition.face_locations(rgb_frame)
        face_encodings = face_recognition.face_encodings(rgb_frame, face_locations)
        face_names = []
        for face_encoding in face_encodings:
            matches = face_recognition.compare_faces(self.known_encodings, face_encoding,tolerance=0.5)
            if True in matches:
                first_match_index = matches.index(True)
                name = self.known_names[first_match_index]
            else:
                name="unknown"
            face_names.append(name)

        for (top, right, bottom, left), name in zip(face_locations, face_names):
            cv2.rectangle(frame, (left, top), (right, bottom), (0, 0, 255), 2)
            self.msg.data = name
            self.pub.publish(self.msg)
            self.get_logger().info('%s checking in' % name)

        cv2.imshow('frame', frame)
        cv2.waitKey(1)

def main(args=None):
    rclpy.init(args=args)
    node = FaceRecg("topic_facerecg_node")
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

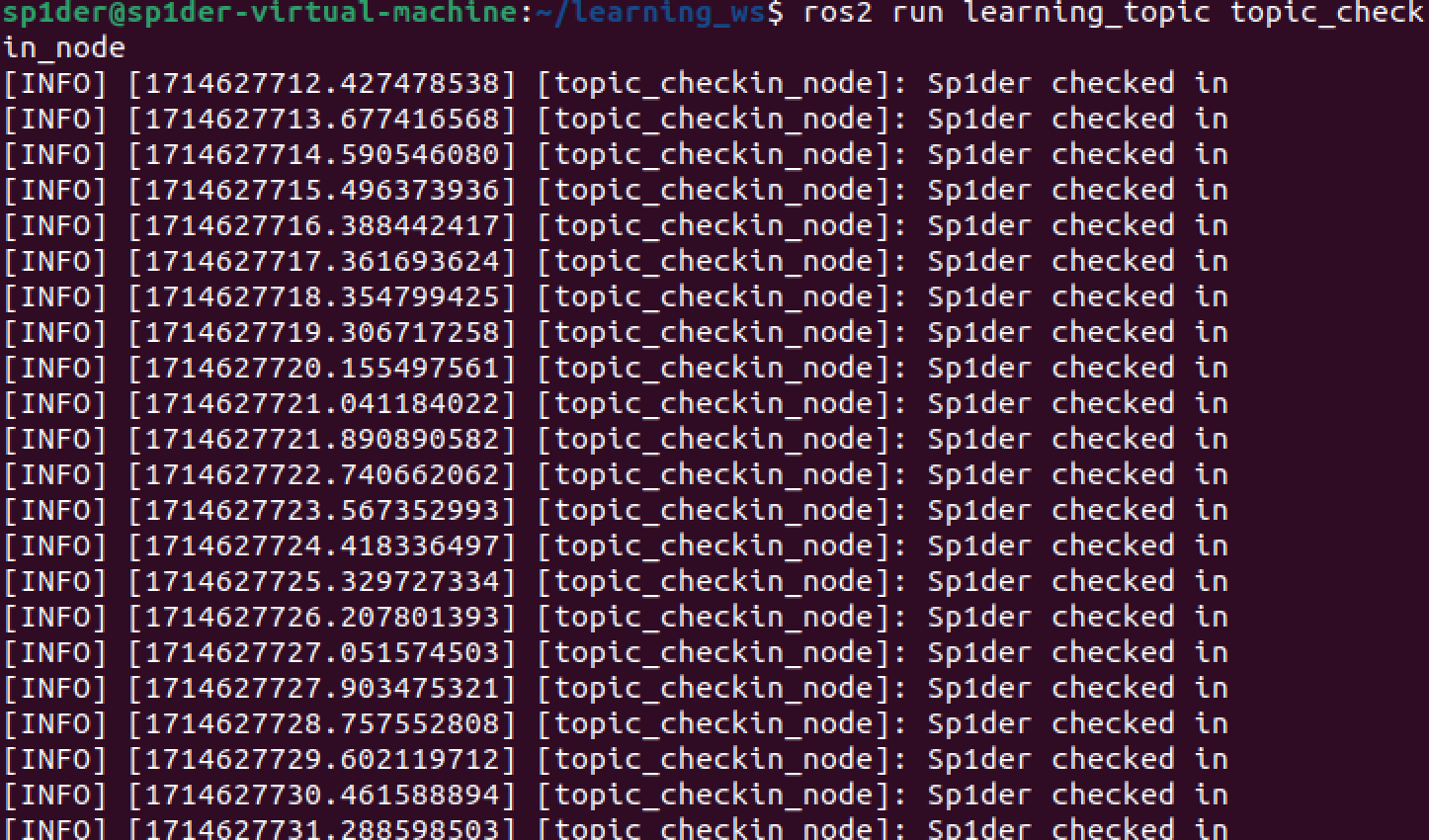

（5）打卡记录节点

import rclpy
from rclpy.node import Node
from std_msgs.msg import String

class Checkin(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        self.sub = self.create_subscription(String, "checkin", self.sub_callback, 10)

    def sub_callback(self, msg):
        self.get_logger().info('%s checked in' % msg.data)

def main(args=None):
    rclpy.init(args=args)
    node = Checkin("topic_checkin_node")
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

（6）配置节点并运行
